Engine & Transmission 16

Max Engine Power 496 bhp @ 5500 rpm

Max Engine Torque 700 Nm @ 2000-4500 rpm

Displacement 3982

Cylinder Nos. Layout V8 (8 cylinders, biturbo in inner-V)

Engine Type 4.0L (3982cc) V8 Biturbo Petrol (M176) + 48V mild hybrid (ISG)

Fuel Type Petrol

Mild-Hybrid System 48V mild hybrid with ISG + intelligent cylinder shut-off (NANOSLIDE cylinder coating)

ISG Integrated Starter-Generator (ISG), 48V system

Transmission Type 9G-TRONIC (9-Speed Automatic)

No of Gears 9

Drivetrain 4MATIC All-Wheel Drive (AWD)

Four-Wheel-Drive 4MATIC permanent all-wheel drive (Torque-On-Demand)

Drive Modes DYNAMIC SELECT (comfort / dynamic)

Acceleration (0-100 kmph) Claimed 4.8 s (0-100 km/h)

Top Speed 250 km/h

Emission Standard BS6 Phase 2

Battery & Charging (EV) 1

Turbocharger / Supercharger Twin-turbo (biturbo, positioned in the inner-V)

Suspension, Steering & Brakes 7

Air / Adaptive Suspension AIRMATIC air suspension with adaptive damping & automatic level control

Four-Wheel / All-Wheel Steering Rear-axle steering, steering angle up to 4.5° / 10° (optional, designo)

ABS (Anti-Lock Braking System) Yes

EBD (Electronic Brake-force Distribution) Yes

ESP (Electronic Stability Program) Yes

TC/TCS (Traction Control System) Yes

Hill Hold Control Yes

Dimensions & Capacity 9

Length 5469

Width 1921

Height 1510

Wheelbase 3396

Kerb Weight 2275

Bootspace 505

Fuel Tank Capacity 76

Seating Capacity 5

Doors 4

Wheels & Tyres 4

Wheel size 48.3 cm (19-inch) Maybach 5-hole light-alloy

Alloy Wheels Yes

Front Tyres 245/45 R19

Rear Tyres 275/40 R19

Warranty 1

Warranty 3 years standard, extendable up to 6 years (Advance Assurance); Mobilo 24x7 roadside assistance 3 yrs (extendable to 8)

Lighting 4

Headlights DIGITAL LIGHT (HD projector-type, adaptive)

Automatic Headlamps Yes

Ambient Interior Lighting Active Ambient Lighting (linked to driver assistance visuals)

Ambient Illumination Adaptive rear lighting (adjustable brightness & colour, individual LED spotlights)

Exterior & Styling 11

Sunroof Yes

Sunroof Type Panoramic (touch-slider operated)

Central Locking Keyless

Power Windows Front & Rear

Power-Closing Doors Comfort doors in the rear — electrically operated power open/close, operable from driver's seat

Soft-Close Doors Servo closing (power-assisted soft-close doors)

Power Tailgate (Power Back Door) HANDS-FREE ACCESS kick-sensor power trunk lid (Cargo space package, through-loading)

Boot Opener Remote trunk-lid lock (driver seat / trunk lid / vehicle key)

Window Sunshade Sun protection package — electric sun blinds in both rear doors + rear-windscreen roller blind

Sun Visor Double sun visor for driver & front passenger (swivel + horizontal slide)

Integrated Washer Jets with Wiper MAGIC VISION CONTROL (heated water channels in the wiper blades)

Comfort & Climate 11

Track Front/Rear 1655 / 1683 mm

Air Conditioner Control THERMOTRONIC automatic climate control

Climate Zones 4 zones

Ventilated Seats Front & Rear (seat climate control with ventilation)

Heated Seats Front & Rear (Seat Heating Plus, 3-level)

Rear AC Vents Vents behind front armrest

Cabin Fragrance / Aromatization AIR-BALANCE package (individual fragrance + ionization)

Air Purifier ENERGIZING AIR CONTROL (air-quality & particulate sensor, antibacterial cabin filter)

Air Ioniser Yes (AIR-BALANCE ionization)

ENERGIZING Comfort ENERGIZING package (comfort/wellness programmes, ENERGIZING seat kinetics)

Floor Carpet 4 deep-pile floor mats

Seating & Upholstery 14

Seat Upholstery Exclusive Nappa Maybach leather (specific diamond design, perforation, double topstitching)

Reclining Rear Seats Executive rear seats — backrest reclines up to 43.5°, electrically extendable leg rest up to 50°, multicontour; standard rear backrest tilt up to 37°

Massage Seats Front & Rear (multicontour massage + calf massage in the rear)

Memory Seats Memory package front & rear (3 positions per outer seat, with fingerprint scanner)

Front Passenger Seat Chauffeur package (front-passenger seat moves forward, fold-down EASY-ADJUST headrest, fold-out footrest)

Comfort Headrest EASY ADJUST comfort headrests, electric height & distance (driver & front passenger)

Driver Seat Adjustment Electric with memory

Seat: Forward / Back Electric

Headrest: Up / Down Electric

Headrests Front & Rear

Rear Armrest Rear centre armrest (First-Class Fond business console optional — temperature-controlled cupholders, storage)

Seatback Table Folding tables in the rear (optional, designo)

Interior Panels Exclusive package — Nappa leather instrument panel, doors & console; Exclusive decorative trim; illuminated 'Maybach' door sills

Rear-Seat Control Device MBUX rear tablet (with High-End Rear Seat Entertainment)

Instrument Cluster 2

Instrument Cluster Screen 12.3" digital driver display (3D driver display optional, designo)

HUD (Heads Up Display) Head-Up Display — available with S 680 4MATIC only (not on S 580)

Storage 1

Cool Box Refrigerated rear cooling compartment with champagne goblets & holders (optional, First-Class Fond)

Airbags & Passive Safety 4

Airbags 10 Airbags (Driver, Front Passenger, 2 Curtain, Driver Side, Front Passenger Side, 2 Rear Passenger Side, plus rear airbags & beltbags)

Inflatable Seatbelt (Beltbag) Beltbag — inflatable rear seat-belt straps for the outer rear seats (severe frontal impact)

pedestrian protection Pedestrian protection with active bonnet

NCAP Rating Not Tested

ADAS & Active Safety 14

PRE-SAFE (Anticipatory Occupant Protection) PRE-SAFE PLUS & PRE-SAFE Impulse Side (anticipatory occupant protection)

Tyre Pressure Monitoring System Yes

Adaptive Cruise Control (Smart Cruise Control) Active Distance Assist DISTRONIC (adaptive, with Active Stop-and-Go & route-based speed adaptation)

AEB (Autonomous Emergency Braking) Active Braking Assist (with cross-traffic & turning-manoeuvre function)

Blind Spot Detection Active Blind Spot Assist (with exit-warning function)

LKA (Lane Keeping Assist) Active Lane Keeping Assist (active steering intervention)

LCA (Lane Change Assist) Active Lane Change Assist

Adaptive Steering Assist (ASA) Active Steering Assist (lane-centering, capacitive steering wheel)

Active Emergency Stop Assist Active Emergency Stop Assist (assists in manual mode, optional one-lane change)

Evasive Steering Assist Active Evasive Steering Assist (responds to pedestrians, cyclists, tailbacks)

Traffic Sign Recognition Active Speed Limit Assist (detected limits auto-adopted by DISTRONIC)

High-beam Assist Highbeam Assist Plus (part of DIGITAL LIGHT)

SVM (Surround View Monitor) 360° Camera (Parking package, all-around view)

Anti Theft Alarm URBAN GUARD vehicle protection Plus — break-in/theft alarm, collision detection, theft assistance (optional, designo)

Driver Assistance & Parking 4

APA (Automatic Parking Assist) Active Parking Assist with PARKTRONIC

Parking Sensors Front & Rear (PARKTRONIC)

Keyless Entry (Remote Central Locking) KEYLESS-GO with flush, automatically extending door handles

Keyless Start/ Button Start Yes

Infotainment & Connectivity 13

Infotainment Screen MBUX — 32.5 cm (12.8") OLED central display (touch); Touch Control Concept + centre-console touchpad

Touch-screen Display Yes

Premium Audio Brand Burmester high-end 4D surround sound system (sound-massage exciters, seat-integrated surround speakers)

Speakers 6+

Rear-Seat Entertainment MBUX High-End Rear Seat Entertainment — two 29 cm (11.6") displays

GPS Navigation System MBUX Navigation Premium (hard-disc, real-time traffic, satellite view, online routing)

Android Auto Yes

Apple CarPlay Yes

Wireless Charger Front & Rear (Qi)

Charging Ports USB-C front & rear (USB Package Plus); 230V socket & HDMI in rear (with rear entertainment)

Voice Command Yes

Voice Assistant 'Hey Mercedes' MBUX assistant — LINGUATRONIC natural voice control (learning, indirect speech)

Fingerprint Sensor Yes (memory package, profile/payment authentication)

Connected Car & App 5

Connected Features Mercedes me connect — vehicle tracker, parked-vehicle locator, remote door lock/unlock, speed/geo alerts, Send2Car, Alexa & Google Home, parking POIs, window/sunroof remote

Remote Engine Start/Stop Yes (Remote Engine Start)

Find My Car Yes (Vehicle Finder — horn & light flashing)

Geo-fence Yes (Geo-fencing)

Car-to-X Communication Yes

Steering & Controls 2

Leather-wrapped Steering Wheel Multifunction steering wheel in wood-and-leather (Maybach), touch control panels

Steering-Mounted Controls Yes

Emerald Green

Nautic Blue

designo Diamond White Bright

Onyx Black

Obsidian Black

Mojave Silver

Graphite Grey

designo Kalahari Gold Metallic

designo Cashmere White Magno

designo Patagonia Red Bright

designo Selenite Grey Magno

designo Diamond White Bright / Obsidian Black

Mojave Silver / Onyx Black

High-tech Silver / Selenite Grey

Nautic Blue / High-tech Silver

Obsidian Black / High-tech Silver

Obsidian Black / Selenite Grey

Obsidian Black / Rubellite Red

Onyx Black / designo Kalahari Gold Metallic

Rubellite Red / designo Kalahari Gold Metallic

Emerald Green / Mojave Silver

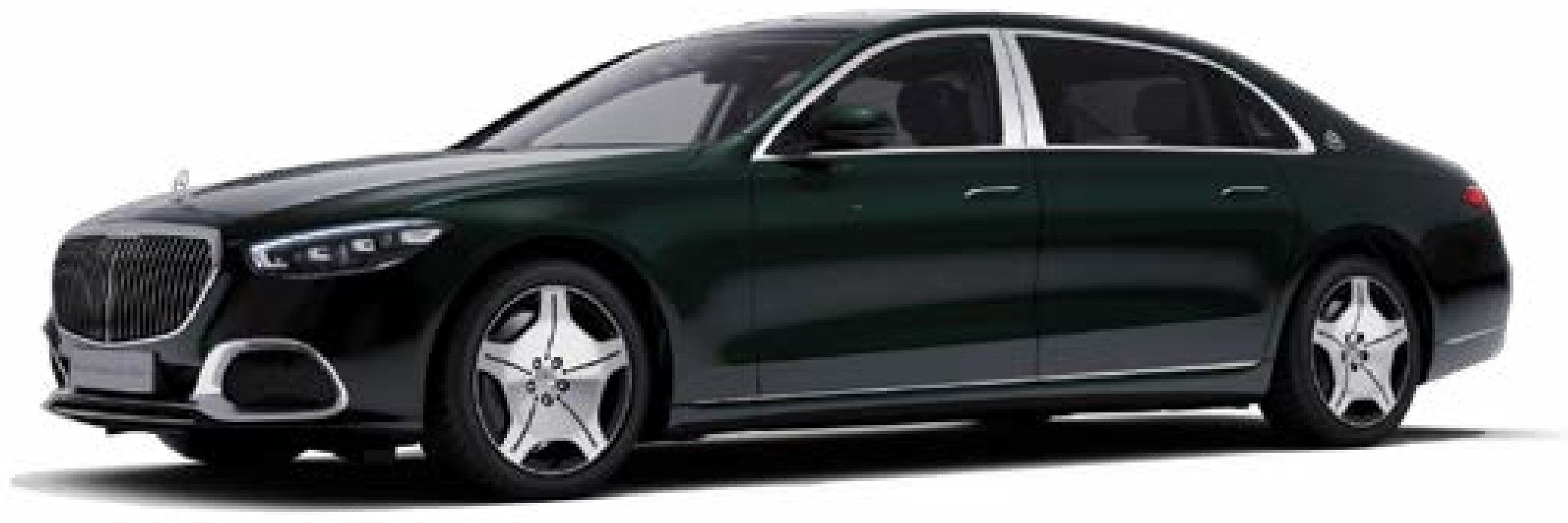

Mercedes-Benz Mercedes-Maybach S-Class S 580 4MATIC

S 580 4MATIC

Key Highlights · S 580 4MATIC

Specs & Features
